Product

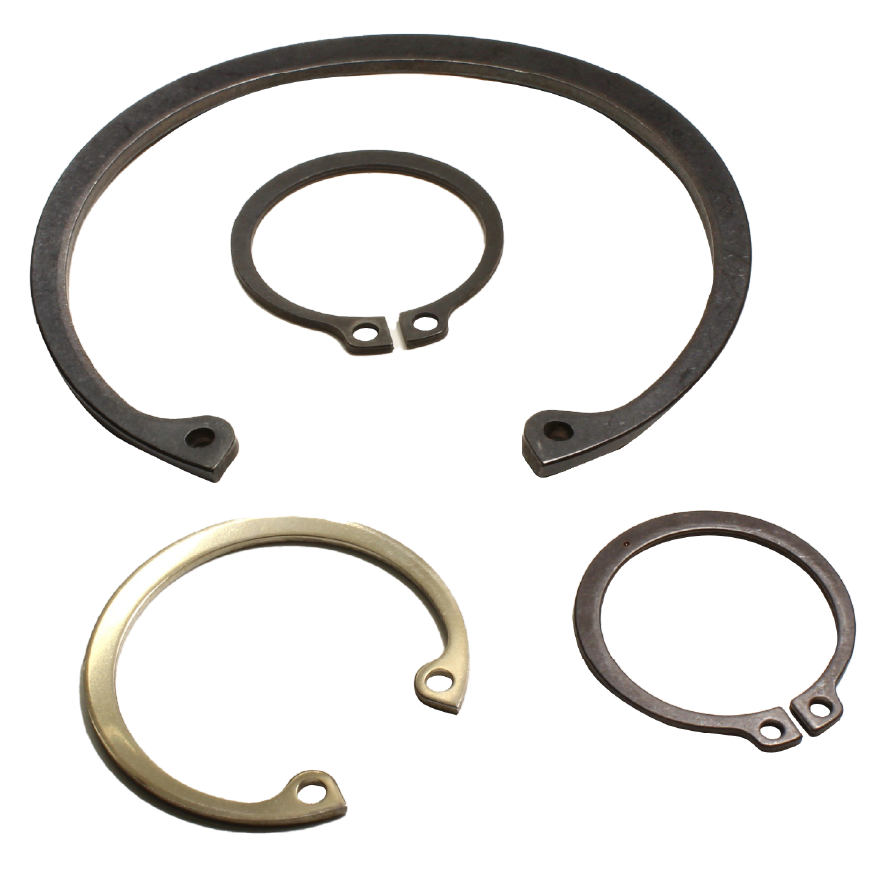

Retaining Ring

Retaining Ring

Applicable field of Retaining Rings

  • Optical Instruments
  • Light Electrical Equipment
  • Automobile Components
  • Construction Machines
  • Precision Instruments
  • Various Machines
FEATURES

Features of IWATA's Retaining Rings

FEATURES01.

Extensive Lineup
  1. Carry wide variety of lineup based on IWATA's official Standards, very near DIN Standards conformance
  2. Meet orders of users' prototypes and mass production

FEATURES02.

Long Sales History and High Quality
  • Over 50 years has passed since IWATA standardized IWATA's official standards
  • Meet the severe demand of car industry and precision industry , because of the high quality and precision level of IWATA's Retaining Rings

FEATURES03.

Easy setup

Users can set up IWATA's Retaining Rings easily

Click here to download an operation manual.

SPECIFICATIONS

Retaining Ring Types

External type

arrowScroll horizontally to view the table.arrow

Specifications Drawing Material PDF

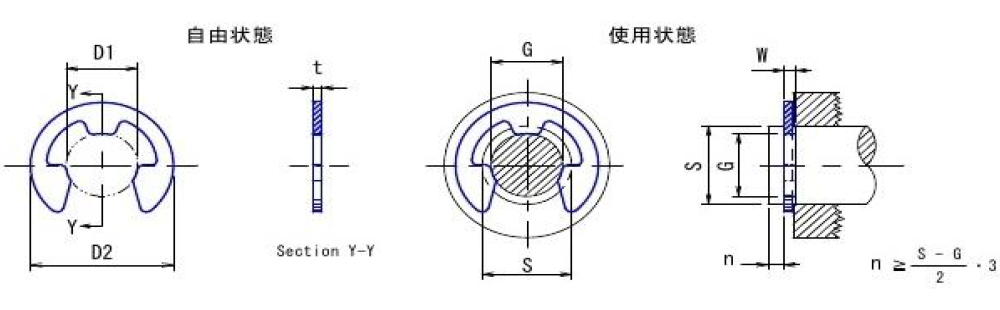

E
(I.W.T.)
E(I.W.T.) SK85M,
SK85,
Stainless
(SUS304)
PDF

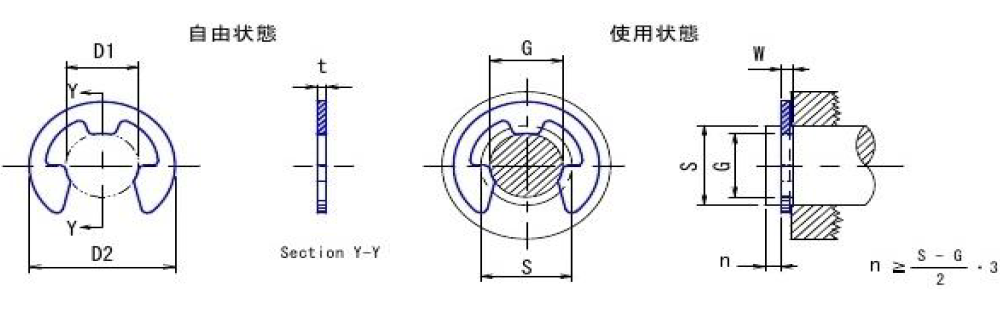

E
(JIS)
E(JIS) SK85M,
SK85,
Stainless
(SUS304)
PDF

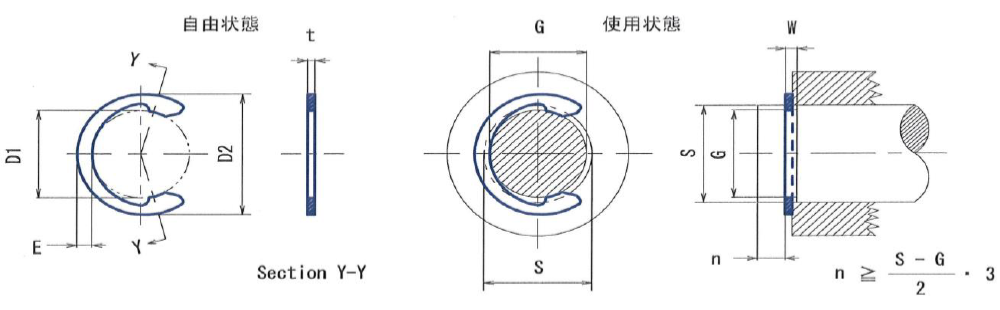

CE CE SK85M,
SK85
PDF

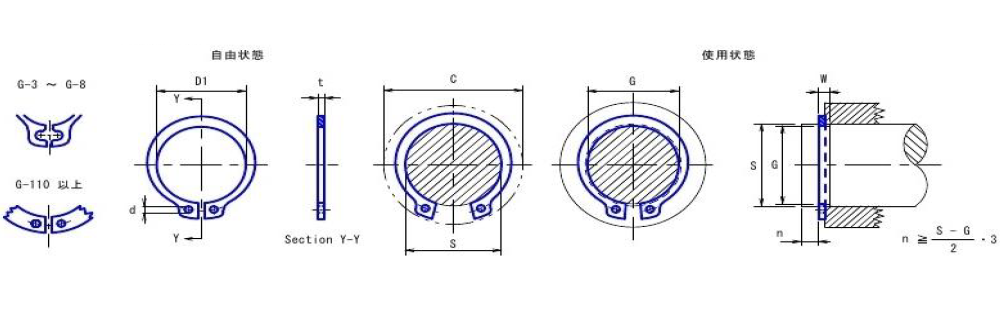

G
(I.W.T.)
G(I.W.T.) SK85M,
SK85
and partially
Stainless
(SUS304)
PDF

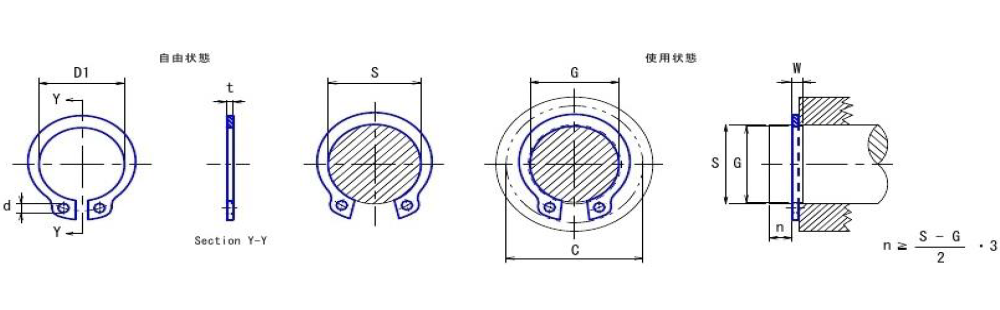

G
(JIS)
G(JIS) SK85M,
SK85,
Stainless
(SUS304)
PDF

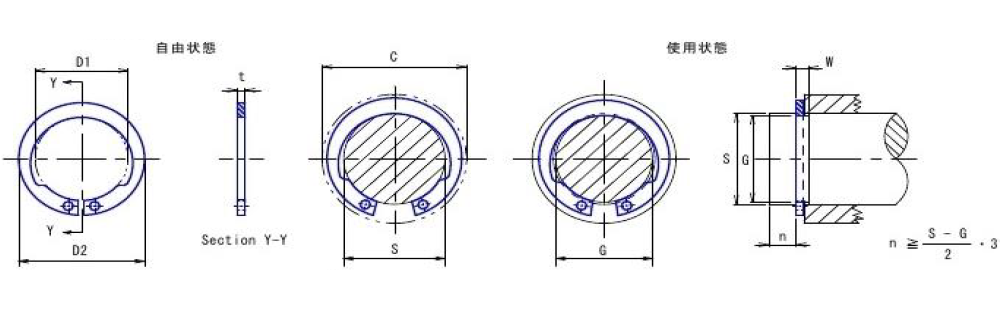

GV GV SK85M,
SK85
PDF

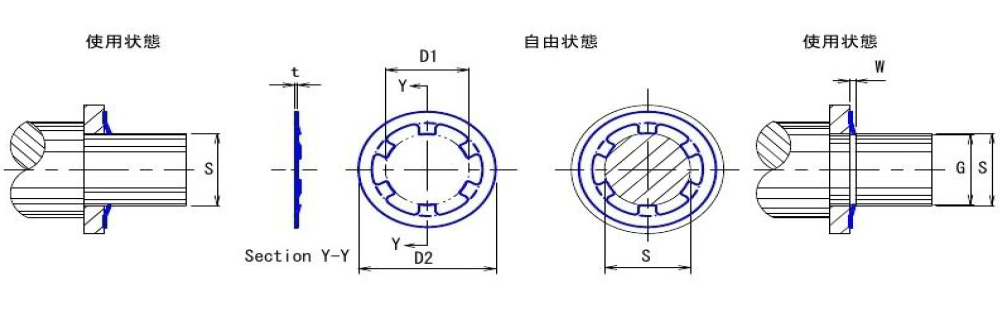

SE SE SK85M,
SK85,
Stainless
(SUS304)
PDF

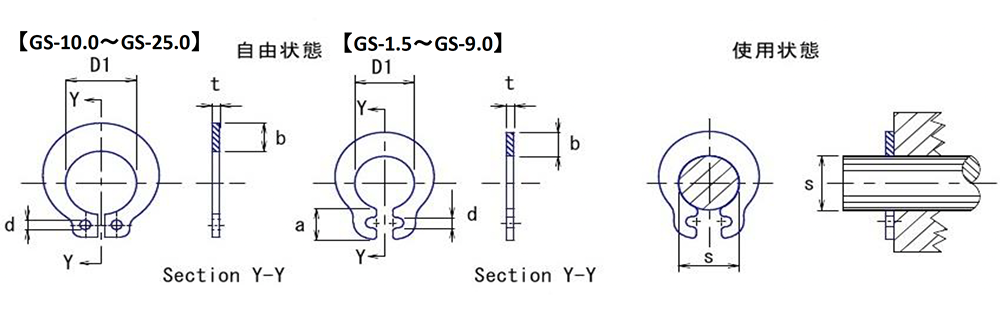

GS GS SK85M,
SK85
PDF
Internal type

arrowScroll horizontally to view the table.arrow

Specifications Drawing Material PDF

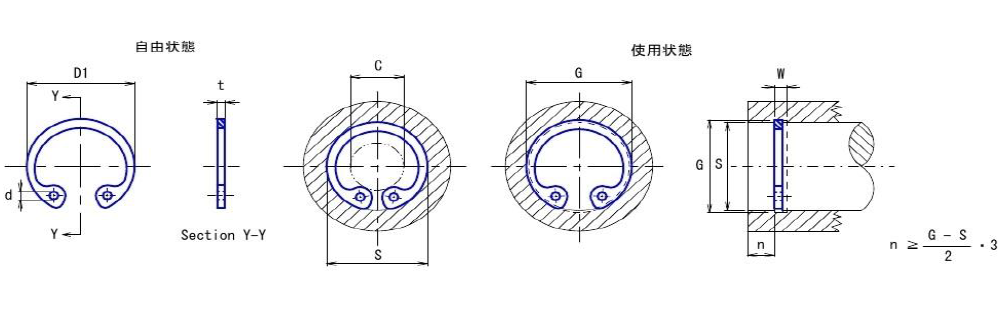

O
(I.W.T.)
O(I.W.T.) SK85M,
SK85
and partially
Stainless
(SUS304)
PDF

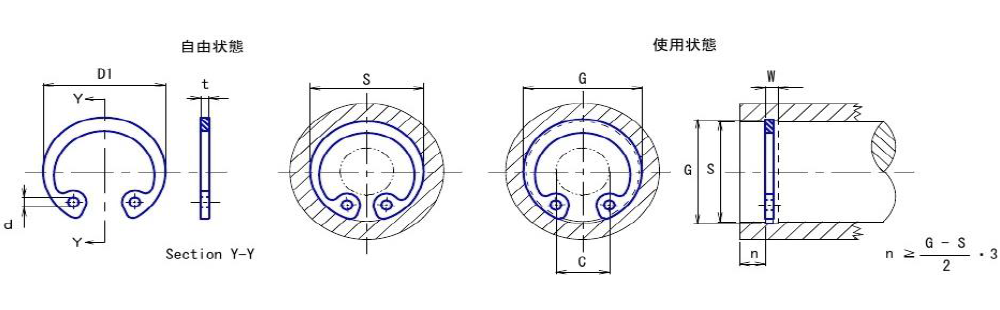

O
(JIS)
O(JIS) SK85M,
SK85,
Stainless
(SUS304)
PDF

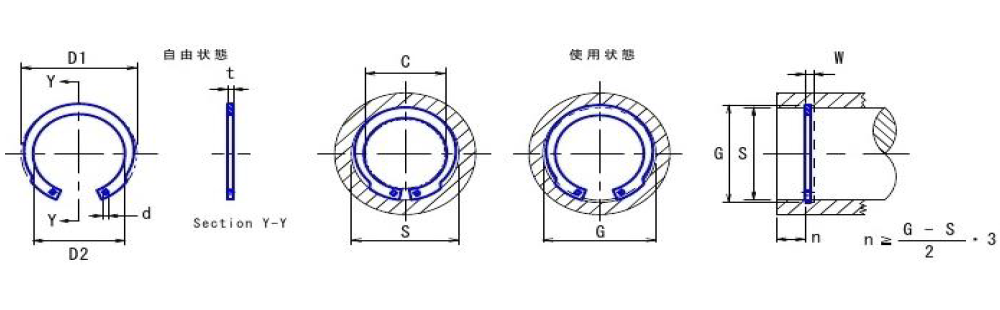

OV OV SK85M,
SK85
and partially
Stainless
(SUS304)
PDF

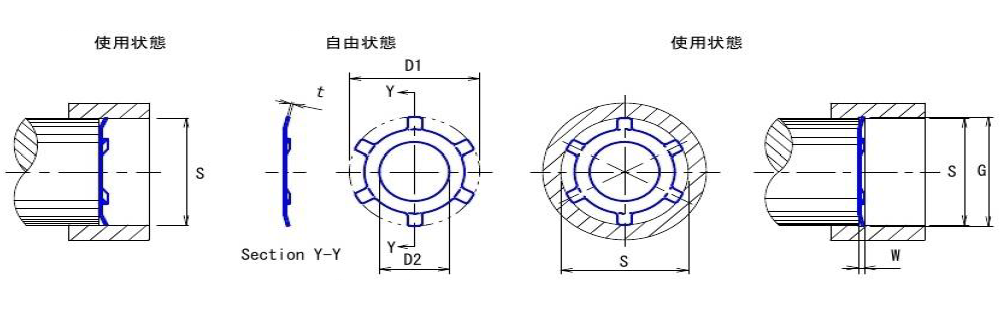

SI SI SK85M,
SK85,
Stainless
(SUS304)
PDF
Bowed type

arrowScroll horizontally to view the table.arrow

Specifications Drawing Material PDF

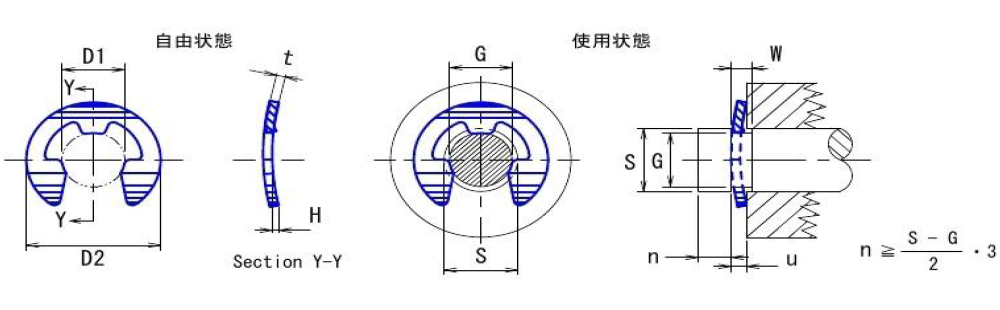

BE BE SK85M,
SK85
PDF

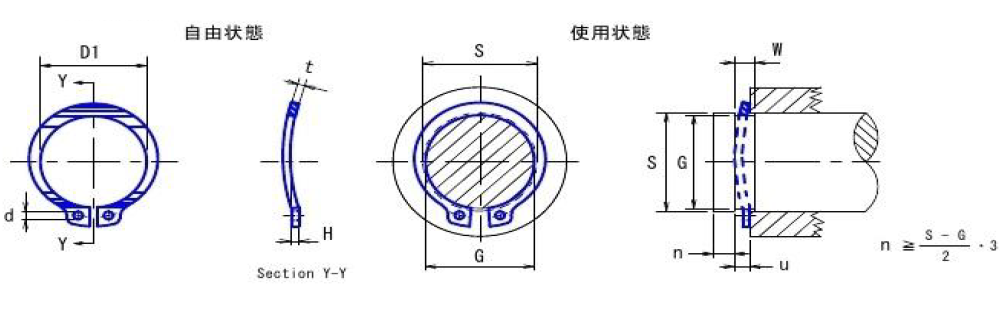

BG BG SK85M,
SK85
PDF

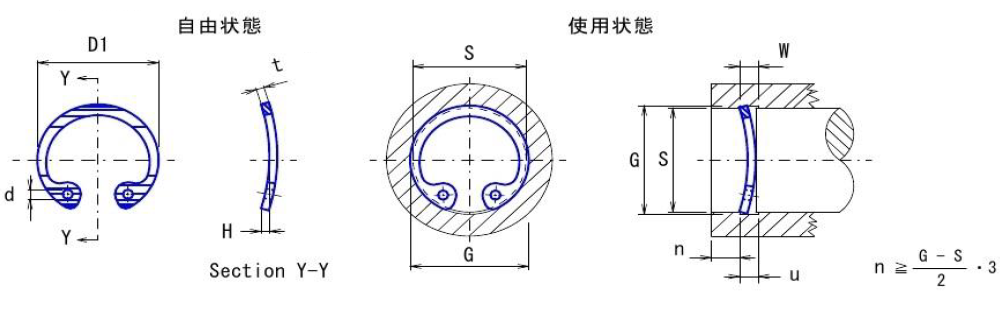

BO BO SK85M,
SK85
PDF

CONTACT

For inquiries about our business or products, please feel free to contact us.
